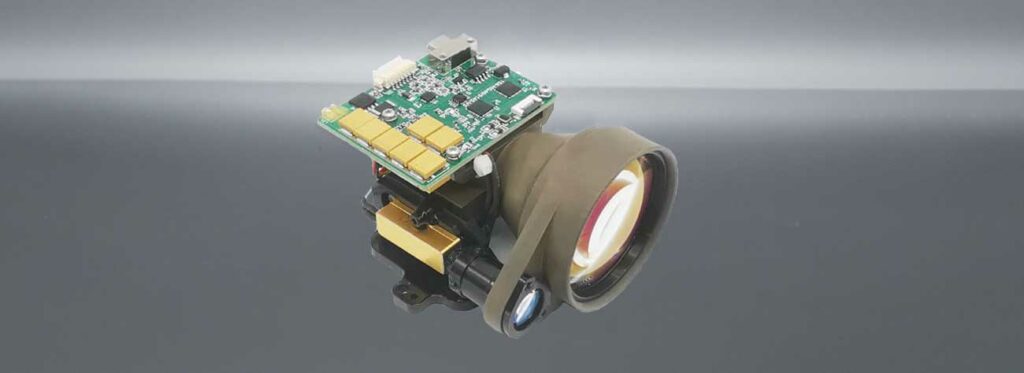

UL-LRF-8 Eyesafe Laser Rangefinder
The UL-LRF-8 laser rangefinder boasts an eye-safe design, compact size, lightweight construction, low power consumption, long lifespan, and wide temperature range, among other features. It finds extensive usage in various applications, including reconnaissance, surveying, and mapping.
Despite the lack of an external shell, this laser rangefinder module includes a broad selection of interfaces, making it simple to mount into any system. Additionally, PC software and communication protocols are available to assist users in utilizing the device with handheld devices and multifunction systems for enhanced convenience.
Features | Applications |
|
|
Parameter
Parameters | Unit | UL-LRF-8 | Comments |
Safety Class | – | Class 1 | Eye safe |
Wavelength | nm | 1535±5 | — |
Max Measuring Range | m | ≥8000 | Target of 2.3mx2.3m, visibility of 12km, humidity of <50% |
Min Measuring Range | m | ≤50 | — |
Range Accuracy | m | ±2 | Affected by weather conditions and target reflectivity |
Measuring Rate | Hz | 0.5-10 | — |
Multiple Targets | – | 5 | — |
Precision | % | ≥98% | — |
False Alarm Rate | % | ≤1% | Probability of occurrence of noise |
Dimensions | mm | 62x42x86 | LxWxH |
Weight | g | ≤145 | — |
Data Interface | – | molex-532610771 | Other interfaces can be customized |
Power Supply | V | 12 | — |
Peak Power Consumption | W | 3 | Max power consumption when start up |
Standby Power Consumption | W | 1.2 | Function to be shut down by external signal can be customized |
Vibration | – | 5Hz, 2.5g | — |
Shock | – | Axial 100g, 1ms | Can be increased based on user’s application scenarios |
Operation Temperature | ℃ | -40~+65 | — |
Storage Temperature | ℃ | -55~+70 | — |

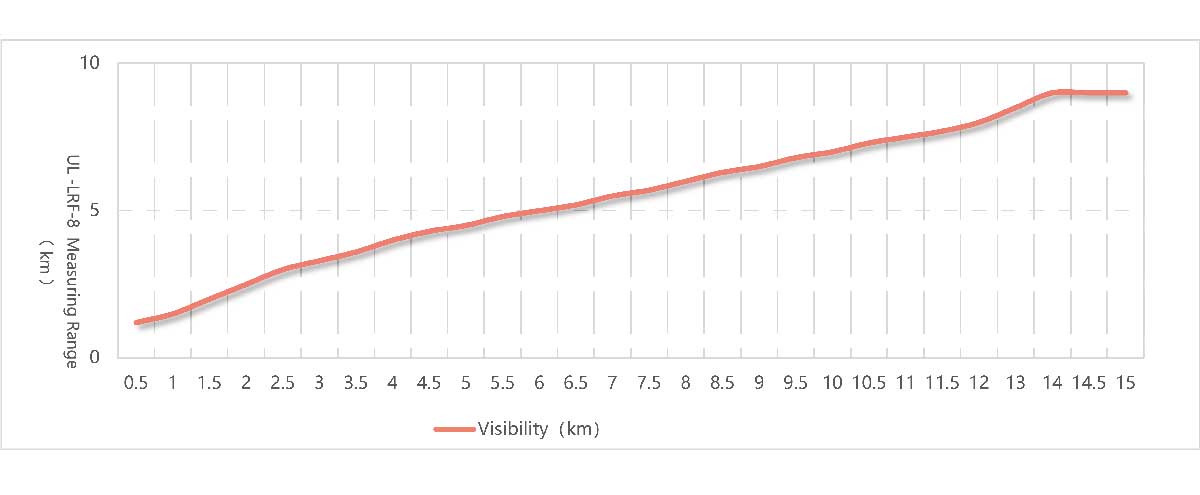

Performance

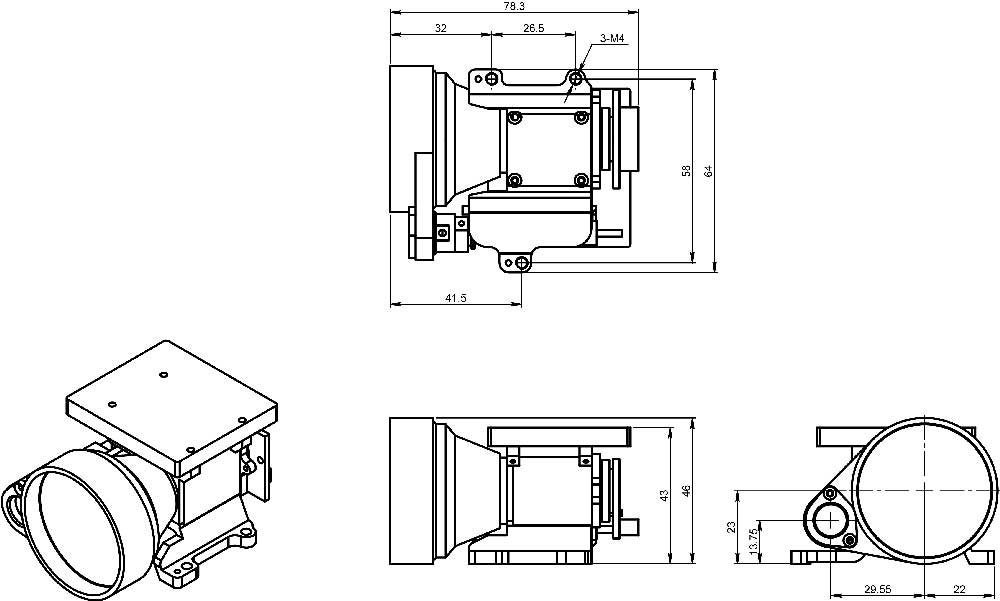

Structural Drawing
If you are intereted in UL-LRF-8 Eyesafe Laser Rangefinder, please click the button below to enquire or ask for a samplel.
