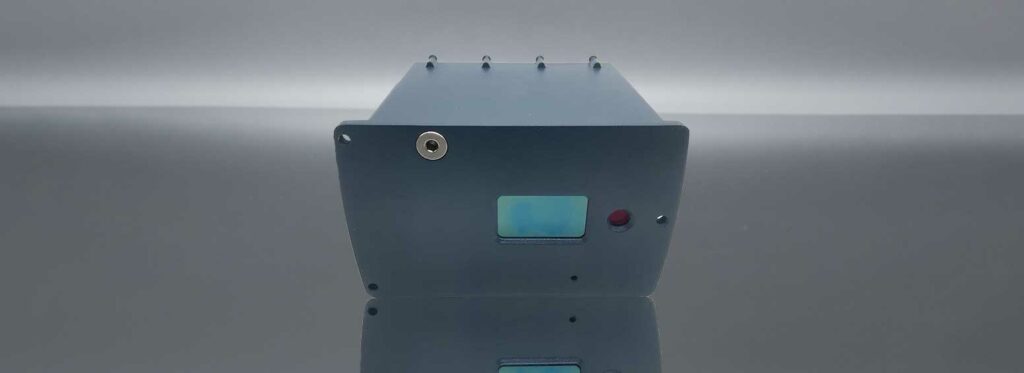

UL-LHM-905D Laser Clearance Monitoring Lidar
The UL-LHM-905D Laser Clearance Monitoring Lidar boasts a compact design, lightweight construction, high precision, and Multi-Lidar correlation detection, making it suitable for operation in the most extreme conditions. It can monitor and measure the clearance between the blade tip and tower of a wind turbine in real-time during operation. If the minimum clearance value reaches the set limit, it can trigger an alarm and emergency shutdown through the blade tip clearance monitoring system, thereby ensuring the safe operation of the wind turbine.
Features | Applications |
|
|
Parameter
Parameters | IVY-LHM-905D |
Laser Source | 905nm, Class 1, Eye safe |
Spot Size | 80*40cm(100m) |
Weight | 1kg |
Supply Voltage | 24V |
Measurement accuracy | ±0.3m@100m |
Detection Distance | ≥200m |
Range Resolution | 0.1m |
Control | Turn on/off Laser Clearance Monitoring Lidar automatically |
Output Interface | RS485, Network interface |
Lightning Protection Level | CLASS-Ⅱ |
Communication Frequency | ≥2KHz, Adjustable |
Radiation Frequency | ≥2KHz, Adjustable |
Return Data | Directly Measure Distance, Return Light Intensity, System Status |
Operation Temperature | -40℃~ +60℃ |
Storage Temperature | -45℃~ +65℃ |
Operating Humidity | 0%~100% RH |
Aiming Beam Accuracy | Deviation of ±0.1°to Measuring Beam |
Aiming Beam Spot | It is clearly visible in 200 meters under sunlight |
Data Storage | Data Output, Real-time Data, Network Time Synchronization, 115200 baud |

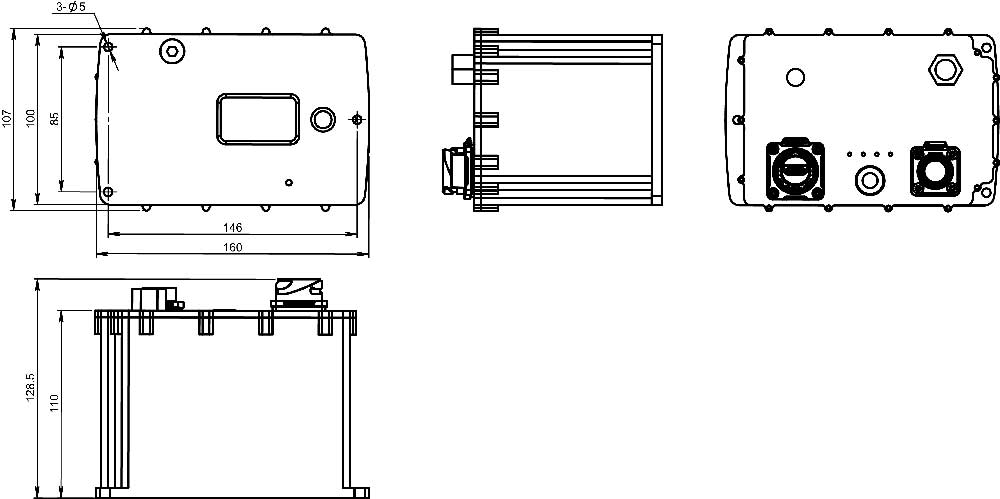

Structural Drawing

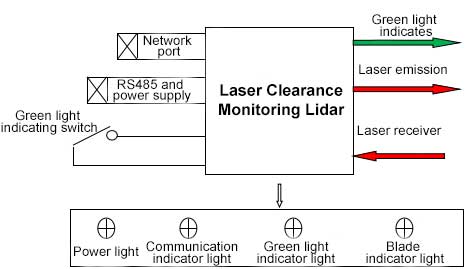

Product Schematic diagram | Structural Drawing |
