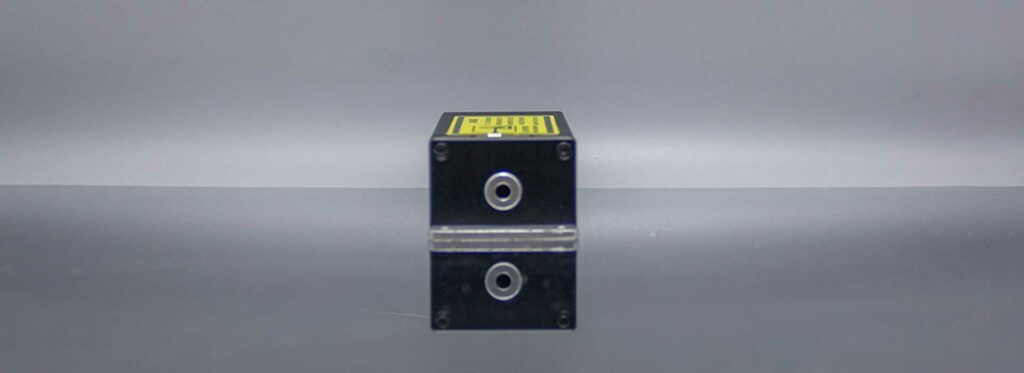

355nm Nd:YAG q-switched nanosecond/picosecond laser
Our 355nm laser is based on the technology of diode pump laser module and q-switch. Nd:YAG crystal is used to manufacture 355nm laser. ULaser can provide 1.5ns, 1ns, 500ps, 550ps and 300ps 355nm microchip laser.
Our 355nm microchip laser has narrow laser pulse width. At the same time, it has high pulse repetition frequency. As a microchip laser, its size is small and its weight is light certainly. Our laser’s beam quality is excellent.
As a uv laser, 355nm microchip laser plays an important role in many fields. It can be used in environment monitoring systems, 3d dental scan, laser ultrasound, laser ionization mass spectrometry and so on.
Main features | Application |
|
|
355nm MA Model and Parameter
Model | UL355-1kHz-30μJ-MA005 | UL355-5kHz-10μJ-MA006 | UL355-10kHz-5μJ-MA007 | UL355-20kHz-3μJ-MA008 |
Wavelength(nm) | 355 | |||
Repetition frequency (KHz) | 1* | 5* | 10* | 20* |
Average power(mW) | 30 | 50 | 50 | 60 |
Output energy(uJ) | 30 | 10 | 5 | 3 |
Pulse width (ps) | 1500 | 1200 | 1200 | 1200 |
Power stability (8h) | ±3% | |||
Beam mode | TEM00 | |||
Full-angle divergence angle Typ. (Mrad) level @ 1/e2 | 5 | |||
Vertical @ 1/e2 | 5 | |||
Polarization characteristics | >100:1 | |||
System power consumption(W) | ≤35 | |||
Power input | 100-240 VAC,50/60Hz | |||
Modulation input | TTL0-5V,SMA interface | |||
Control interface | RS232、USB | |||
Power supply size (W × H × L, mm) | 168×88×140 | |||
Laser head size (W × H × L, mm) | 45×30×120 | |||
Working temperature (℃) | 15-35 | |||
Storage temperature (℃) | 0-60 | |||
1.*The light outlet of the laser head is side outlet. See the mechanical dimension drawing for details | ||||
expansion function to meet the requirements of small divergence angle (less than 2mrad) | ||||
355nm MA Microchip laser system PDF |
355nm MC Model and Parameter
Model | UL355-1kHz-20μJ-MC005 | UL355-5kHz-10μJ-MC006 | UL355-10kHz-5μJ-MC007 |
Wavelength(nm) | 355 | ||
Repetition frequency (KHz) | 1* | 5* | 10* |
Average power(mW) | 20 | 50 | 50 |
Output energy(uJ) | 20 | 10 | 5 |
Pulse width (ps) | 650 | ||
Power stability (8h) | ±3% | ||
Beam mode | TEM00 | ||
Full-angle divergence angle Typ. (Mrad) level @ 1/e2 | 5 | 8 | |
Vertical @1/e2 | 5 | 8 | |
Polarization characteristics | >100:1 | ||
System power consumption(W) | ≤25 | ≤30 | |
Power input | 100-240 VAC,50/60Hz | ||
Control interface | RS232、USB | ||
Power supply size (W × H × L, mm) | 168×88×140 | ||
Laser head size (W × H × L, mm) | 45×30×120 | ||
Working temperature (℃) | 15-35 | ||
Storage temperature (℃) | 0-60 | ||
1.*The light outlet of the laser head is side outlet. See the mechanical dimension drawing for details | |||
2.Customized internal beam expansion function to meet the requirements of small divergence angle (less than 2mrad) | |||
355nm MC Microchip laser system PDF |
355nm MD Model and Parameter
Model | UL355-0.1kHz-15μJ-MD002 |
Wavelength(nm) | 355 |
Repetition frequency (KHz) | 0.1* |
Average power(mW) | 1.5 |
Output energy(uJ) | 15 |
Pulse width (ps) | 300 |
Power stability (8h) | ±3% |
Beam mode | TEM00 |
Full-angle divergence angle Typ. (Mrad) level @ 1/e2 | 8 |
Vertical @1/e2 | 8 |
Polarization characteristics | >100:1 |
System power consumption(W) | ≤25 |
Power input | 100-240 VAC,50/60Hz |
Control interface | RS232、USB |
Power supply size (W × H × L, mm) | 168×88×140 |
Laser head size (W × H × L, mm) | 45×30×120 |
Working temperature (℃) | 15-35 |
Storage temperature (℃) | 0-60 |
1.*The light outlet of the laser head is side outlet. See the mechanical dimension drawing for details | |
2.Customized internal beam expansion function to meet the requirements of small divergence angle (less than 2mrad) | |
355nm MD Microchip laser system PDF |
355nm MO Model and Parameter
Model | UL355-200Hz-25/20μJ-MO002 |
Wavelength(nm) | 355 |
Repetition frequency(Hz) | 1-200 |
Maximum output energy of space beam (μJ) | 25 |
Fiber coupling maximum output energy (μJ) | 20 |
Pulse width (ns) | ≤1 |
Power stability(RMS,4h) | ≤3% |
Energy Regulation Step Accuracy | ≤2% |
Beam mode (spatial beam output) | TEM00 |
Full-angle divergence angle Typ. (Mrad) level @ 1/e2 | ≤2 |
Full-angle divergence angle Typ. (Mrad)Vertical @ 1/e2 | ≤2 |
Polarization characteristics | ≥100:1 |
Fiber parameters (fiber coupled output optional) | 200μm/0.22NA |
Power input | 24V DC |
Modulation input | TTL0-5V,SMB connector |
Control interface | RS232 |
System Peak Power Consumption (W) | <20 |
System Average Power Consumption (W) | <10 |
Laser head size (W × H × L, mm) | 82×102.8×240 (space)/ 82x79x250(optical fiber) |
Working temperature (℃) | 10-40 |
Storage temperature (℃) | 0-60 |
1. the operating frequency is 16~200hz in continuous mode and burst mode | |
2. three types of optical fiber coupling are available: 150μm (0.12NA), 180μm (0.10NA), 200μm (0.14NA) | |
3. the supplied power supply adapter can support 90~260VAC power supply input | |
355nm MO Microchip laser system PDF |
