UL-LRF-5 Eyesafe Laser Rangefinder
The UL-LRF-5 laser rangefinder boasts an eye-safe design, compact form factor, lightweight construction, low power consumption, long lifespan, and wide temperature range, among other features. It is widely employed in numerous applications such as reconnaissance, surveying, and mapping.
Although lacking an external shell, this laser rangefinder module comes equipped with a broad selection of interfaces, making it easy to mount into any system. Additionally, for the convenience of users utilizing handheld devices and multifunction systems, PC software and communication protocols are also available.
Features | Applications |
|
|
Parameter
Parameters | Unit | UL-LRF-5 | Comments |
Safety Class | – | Class 1 | Eye safe |
Wavelength | nm | 1535±5 | — |
Max Measuring Range | m | ≥5000 | Target of 2.3m×2.3m visibility of 8km |
Min Measuring Range | m | ≤20 | — |
Range Accuracy | m | ±2 | Affected by weather conditions and target reflectivity |
Measuring Rate | Hz | 0.5-10 | — |
Multiple Targets | – | 5 | — |
Precision | % | ≥98% | — |
False Alarm Rate | % | ≤1% | Probability of occurrence of noise |
Dimensions | mm | 69×41×30 | L×W×H |
Weight | g | ≤95 | — |
Data Interface | – | molex-532610771 | Other interfaces can be customized |
Power Supply | V | 5 | — |
Peak Power Consumption | W | 2 | Max power consumption when start up |
Standby Power Consumption | W | 1.2 | Function to be shut down by external signal can be customized |
Vibration | – | 5Hz, 2.5g | — |
Shock | – | Axial 100g, 1ms | Can be increased based on user’s application scenarios |
Operation Temperature | ℃ | -40~+65 | — |
Storage Temperature | ℃ | -55~+70 | — |

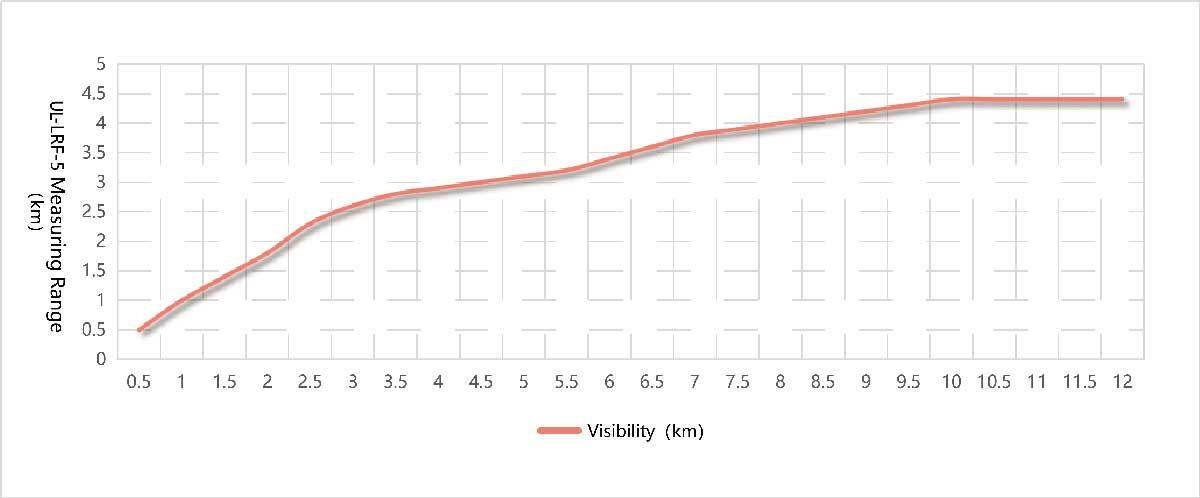

Performance

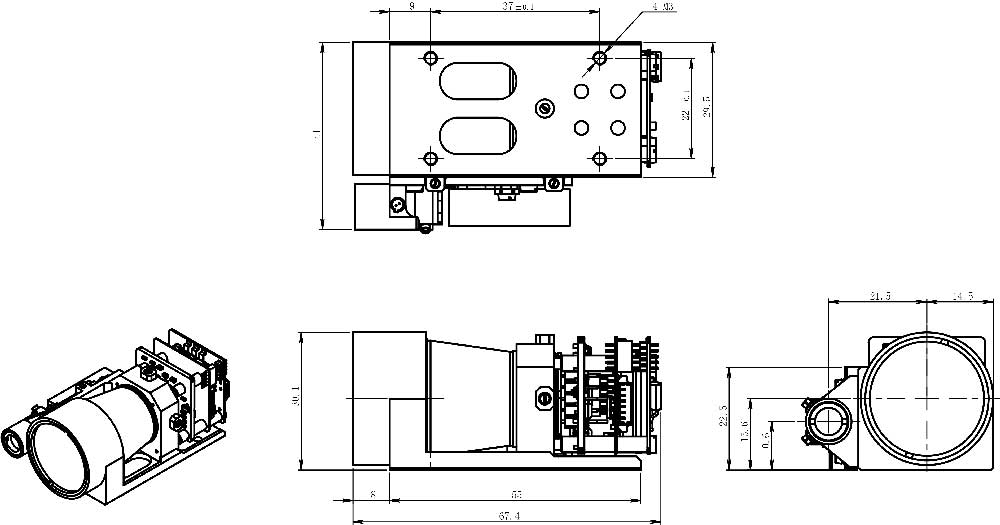

Structural Drawing
