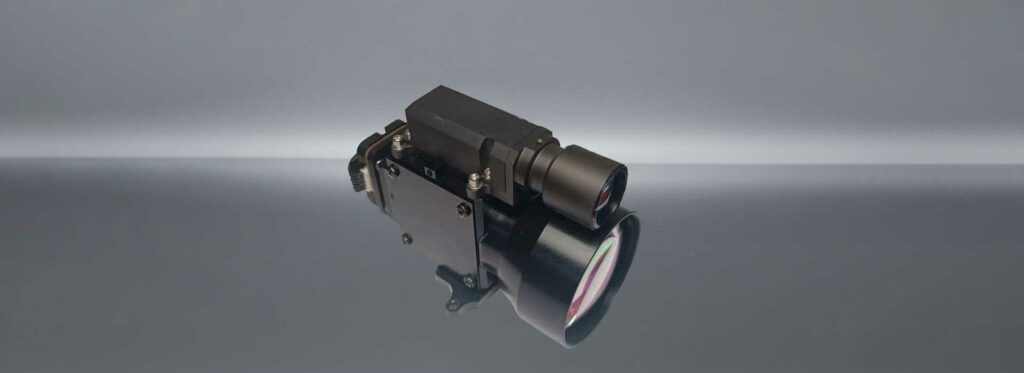

UL-LRF-10 Eyesafe Laser Rangefinder

The UL-LRF-10 laser rangefinder showcases an eyesafe design, compact form factor, lightweight construction, low power consumption, long lifespan, and wide temperature range, among other features. It is extensively utilized in various applications, such as reconnaissance, surveying, and mapping.

Despite the absence of an external shell, this laser rangefinder module includes a broad selection of interfaces, making it easy to integrate into any system. Moreover, PC software and communication protocols are available to aid users in using the device with handheld devices and multifunction systems, thereby enhancing their convenience.

Features Applications
  • Single shot ranging and continuous ranging
  • 3-target detection, front and back target indication
  • Contain self-checking function
  • Wake-on-lan function
  • Number of emitted pulses during MNBF ≥1×10⁶ times
  • Handheld devices
  • Unmanned aerial vehicle
  • Electro-optical pod
  • Border surveillance

Parameter

ParametersUnitUL-LRF-10Comments
Safety ClassClass 1Eye safe
Wavelengthnm1535±5
Max Measuring Rangem≥10000Target of 2.3m×2.3m visibility of 13km
Min Measuring Rangem≤20
Range Accuracym±2Affected by weather conditions and target reflectivity
Measuring RateHz0.5-10
Multiple Targets5
Precision%≥98%
False Alarm Rate%≤1%Probability of occurrence of noise
Dimensionsmm107×62×72L×W×H
Weightg≤275
Data Interfacemolex-532610771Other interfaces can be customized
Power SupplyV12
Peak Power ConsumptionW3Max power consumption when start up
Standby Power ConsumptionW1.5Function to be shut down by external signal can be customized
Vibration5Hz, 2.5g
ShockAxial 100g, 1msCan be increased based on user’s application scenarios
Operation Temperature-40~+65
Storage Temperature-55~+70

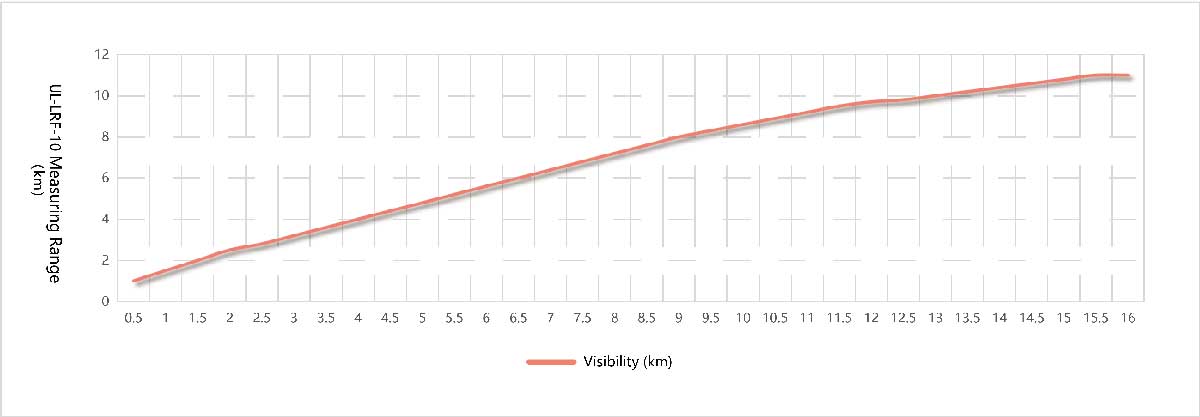

Performance

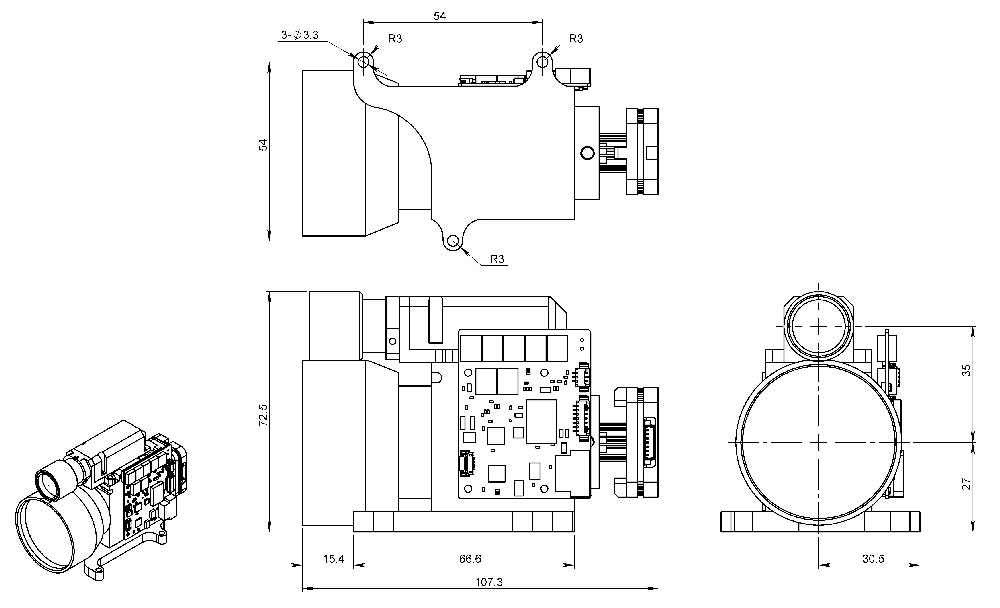

Structural Drawing

If you are intereted in UL-LRF-10 Eyesafe Laser Rangefinder, please click the button below to enquire or ask for a samplel.
