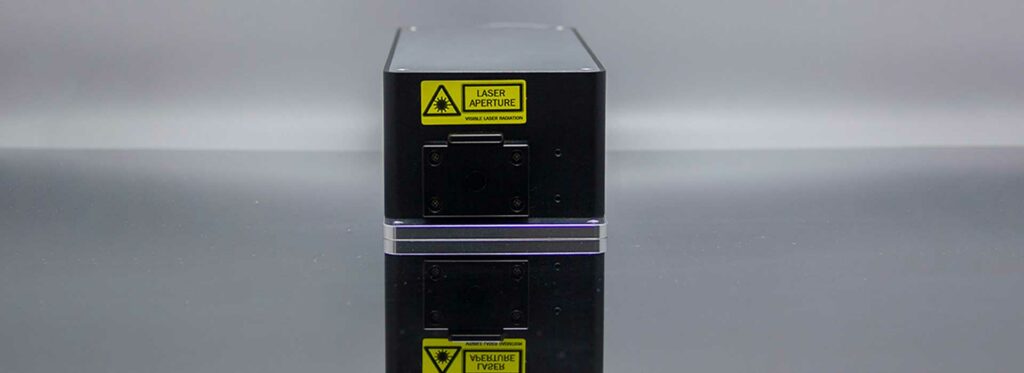

213nm Nd:YVO4 q-switched picosecond laser

Your Position: Home » Products » 213nm Nd:YVO4 q-switched picosecond laser
213nm Nd:YVO<sub>4</sub> q-switched picosecond laser” class=”wp-image-5697″/></div><div class=
Download product PDF

213nm laser is the laser with shortest wavelength among ULaser’s products. It is a deep uv laser, which is based on Nd:YVO4. 550ps and 600ps are optional.

Our 213nm laser has narrow laser pulse width and high pulse repetition frequency. Compact laser head makes 213nm laser integrate easily. Our 213nm laser is compatible with internal and external triggers.

Our 213nm laser can replace ArF excimer laser in lots of areas. It performs well in industry, like laser ablation and marking. Our 213nm laser can also be used in some precision field like fabrication of fiber Bragg grating, photolithography process and so on.

Main features Application
  • Pulse width up to 300ps
  • Pulse energy up to 180 μJ
  • High polarization direction stability
  • Fully sealed design, high reliability
  • Beam mode is TEM00
  • Maximum repetition rate up to 50KHz
  • Seed source
  • Laser ultrasonic testing
  • Optical parametric oscillation pump source
  • Micromachining
  • Laser ionization mass spectrometer
  • Laser induced breakdown spectroscopy
  • Radar ranging
  • Ultrasonic imaging



213nm MC Model and Parameter

ModelUL213-1KHz-4μJ-MC001
Wavelength(nm)213
Repetition frequency (KHz)1*
Average power(mW)4
Output energy(uJ)4
Pulse width (ps)650
Power stability (8h)±3%
Beam modeTEM00
Full-angle divergence angle Typ. (Mrad) level @ 1/e25
Vertical @ 1/e25
Polarization characteristics＞100:1
System power consumption（W）≤25
Power input100-240 VAC,50/60Hz
Control interfaceRS232、USB
Power supply size (W × H × L, mm)168×88×140
Laser head size (W × H × L, mm)45×30×120
Working temperature (℃)15-35
Storage temperature (℃)0-60
1. * the light outlet of the laser head is side outlet. Please refer to the mechanical dimension drawing for details.
2. the built-in beam expanding function can be customized to meet the requirements of small divergence angle (less than 2mrad).
213nm MC Microchip laser system PDF
