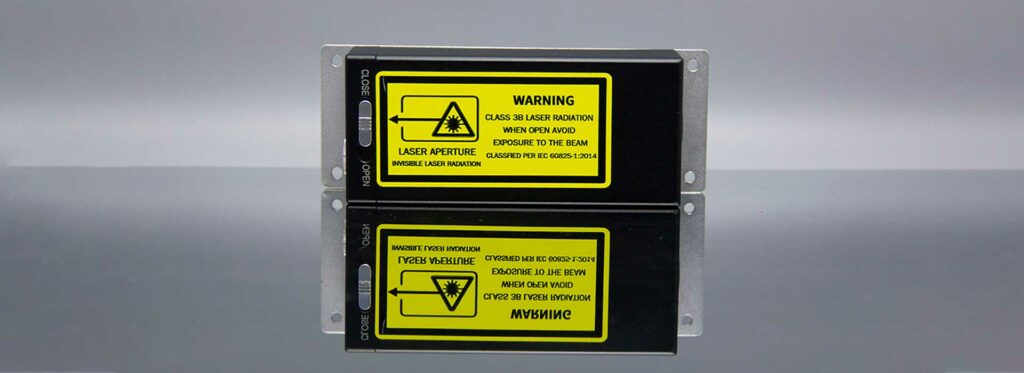

473nm Nd:YAG q-switched nanosecond laser
Download product PDF

473nm laser is one of the series of solid state laser provided by ULaser. Based on Nd:YAG crystal and appropriate nonlinear crystal, we can get 473nm laser by stimulated radiation transition at 946nm. ULaser can provide 2ns laser with different output power.

Our 473nm laser has stable and high single pulse energy. With high pulse repetition frequency (5kHz), it can gain 20mW. Our 473nm laser implements miniaturization and low noise design, thus, it is easy to put into most systems.

Our 473nm laser is very suitable for laser induced fluorescence, laser ultrasound, Raman spectrometer and radar ranging.

Main features Application
  • Compact structure and high stability
  • High polarization direction stability
  • Repetition rate up to 5KHz
  • Beam mode is TEM00
  • Laser induced fluorescence
  • Ultrasonic testing
  • Radar ranging
  • Raman spectroscopic detection

473nm MI Model and Parameter

ModelUL473-1kHz-5μJ-MI002
Wavelength(nm)473
Repetition frequency (KHz)1
Average power(mW)5
Output energy(uJ)5
Pulse width (ps)2000
Power stability (8h)±3%
Beam modeTEM00
Full-angle divergence angle Typ. (Mrad) level @ 1/e27
Vertical @ 1/e27
Polarization characteristics＞100:1
System power consumption（W）≤15
Power input100-240 VAC,50/60Hz
Control interfaceRS232、USB
Power supply size (W × H × L, mm)168×88×140
Laser head size (W × H × L, mm)45×30×120
Working temperature (℃)15-35
Storage temperature (℃)0-60
473nm MI Microchip laser system PDF
