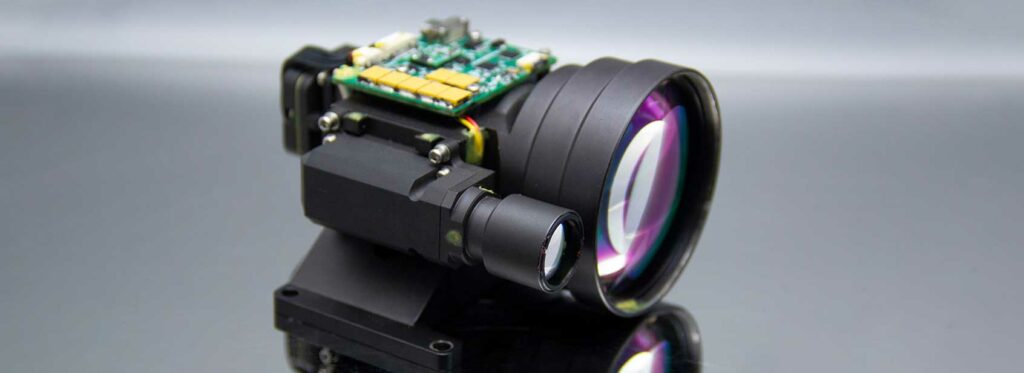

UL-LRF-20 Eyesafe Laser Rangefinder
The UL-LRF-20 laser rangefinder boasts an eyesafe design, compact form factor, lightweight construction, low power consumption, long lifespan, and wide temperature range, among other features. It is extensively utilized in various applications, such as reconnaissance, surveying, and mapping.
Despite not having an external shell, this laser rangefinder module includes a broad selection of interfaces, making it easy to integrate into any system. Additionally, for user convenience, PC software and communication protocols are available to aid in using the device with handheld devices and multifunction systems.
Features | Applications |
|
|
Parameter
Parameters | Unit | UL-LRF-20 | Comments |
Safety Class | – | Class 1 | Eye safe |
Wavelength | nm | 1535±5 | — |
Max Measuring Range | m | ≥20000 | Target of 3m×3m visibility of 26km |
Min Measuring Range | m | ≤50 | — |
Range Accuracy | m | ±2 | Affected by weather conditions and target reflectivity |
Measuring Rate | Hz | 0.5-10 | — |
Multiple Targets | – | 5 | — |
Precision | % | ≥98% | — |
False Alarm Rate | % | ≤1% | Probability of occurrence of noise |
Dimensions | mm | 125×100×70 | L×W×H |
Weight | g | ≤380 | — |
Data Interface | – | J30J | Other interfaces can be customized |
Power Supply | V | 12 | — |
Peak Power Consumption | W | 3 | Max power consumption when start up |
Standby Power Consumption | W | 1.2 | Function to be shut down by external signal can be customized |
Vibration | – | 5Hz, 2.5g | — |
Shock | – | Axial 100g, 1ms | Can be increased based on user’s application scenarios |
Operation Temperature | ℃ | -40~+65 | — |
Storage Temperature | ℃ | -55~+70 | — |

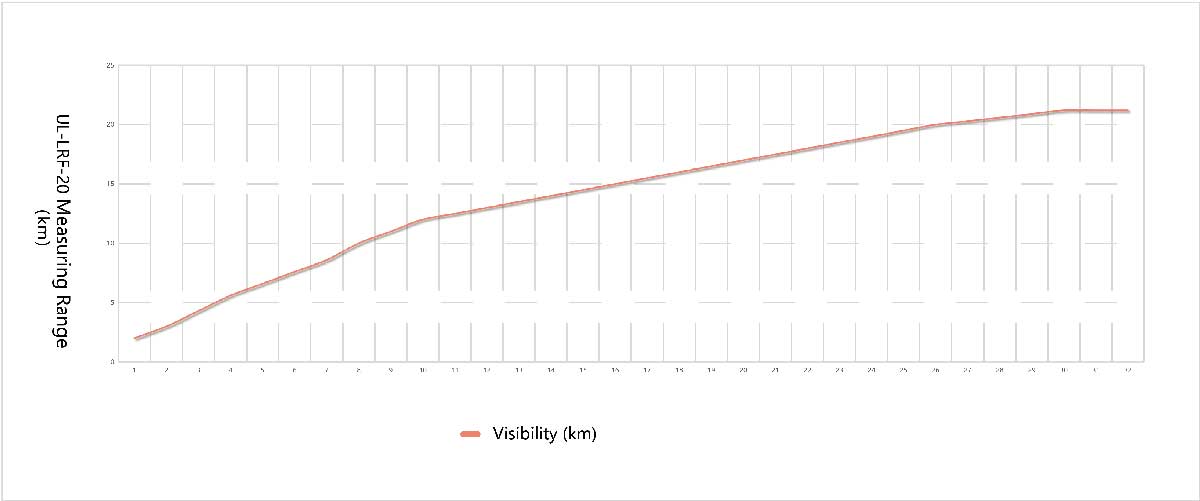

Performance

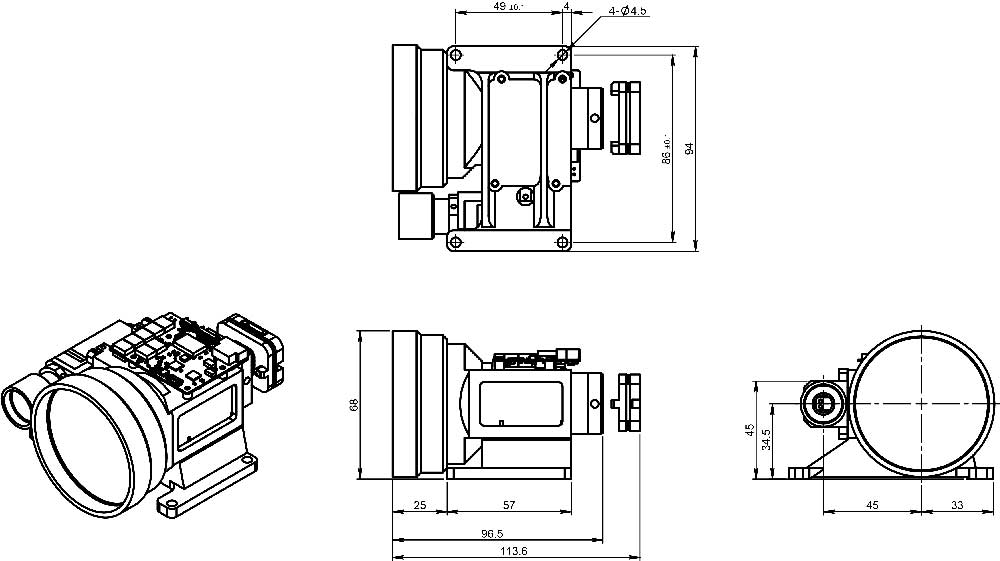

Structural Drawing
