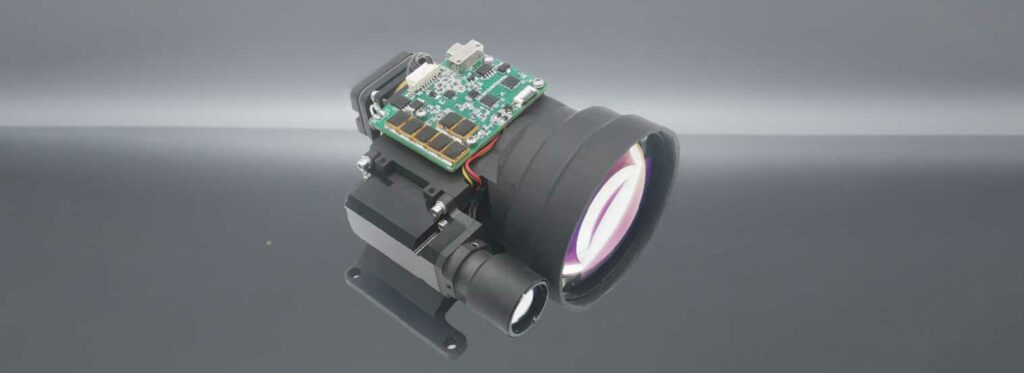

UL-LRF-18 Eyesafe Laser Rangefinder
UL-LRF-18 laser rangefinder features eyesafe, lower power consumption, long measuring range, long life, wide temperature range, etc. The UL-LRF-18 is widely used in applications including reconnaissance, surveying and mapping.
This laser rangefinder module does not contain a shell, but is equipped with wide range of interfaces and can be mounted into any system with ease. PC software and communication protocol are also available for the convenience of users in the use of handheld devices and multi-function systems.
Features | Applications |
|
|
Parameter
Parameters | Unit | UL-LRF-18 | Comments |
Safety Class | – | Class 1 | Eye safe |
Wavelength | nm | 1535±5 | — |
Max Measuring Range | m | ≥18000 | Target of 3mx3m, visibility of 26km |
Min Measuring Range | m | ≤50 | — |
Range Accuracy | m | ±2 | Affected by weather conditions and target reflectivity |
Measuring Rate | Hz | 0.5-10 | — |
Multiple Targets | – | 5 | — |
Precision | % | ≥98% | — |
False Alarm Rate | % | ≤1% | Probability of occurrence of noise |
Dimensions | mm | 125x100x70 | LxWxH |
Weight | g | ≤3800 | — |
Data Interface | – | J30J | Other interfaces can be customized |
Power Supply | V | 12 | — |
Peak Power Consumption | W | 3 | Max power consumption when start up |
Standby Power Consumption | W | 1.2 | Function to be shut down by external signal can be customized |
Vibration | – | 5Hz, 2.5g | — |
Shock | – | Axial 100g, 1ms | Can be increased based on user’s application scenarios |
Operation Temperature | ℃ | -40~+65 | — |
Storage Temperature | ℃ | -55~+70 | — |

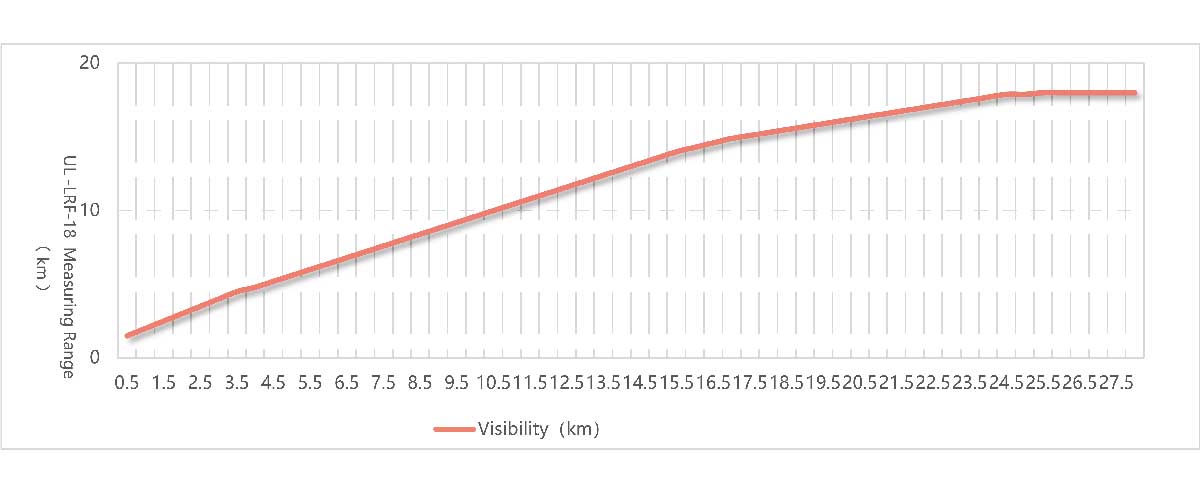

Performance

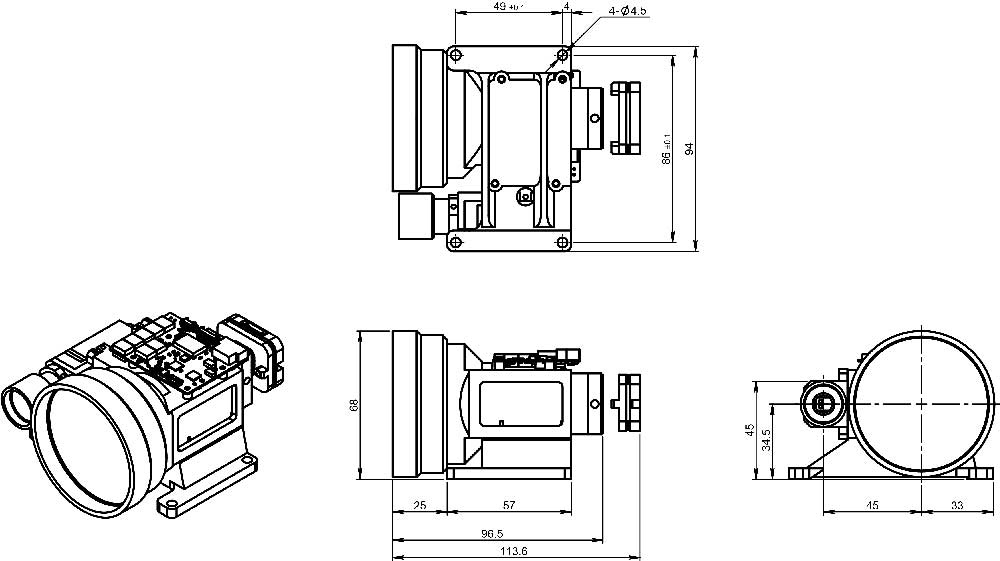

Structural Drawing
If you are intereted in UL-LRF-18 Eyesafe Laser Rangefinder, please click the button below to enquire or ask for a samplel.
