Line laser module
ULaser’s line laser modules are available in three types:
- Large depth of field
- High power
- Adjustable focus
Line laser module · Large depth of field
Product Parameters | 405-450nm | 505-520nm | 635-650nm | 780-980nm | |
Optical | Wavelength Error | ±10nm | ±5nm | ±5nm | ±10nm |
Outlet Optical Power | 1.0~180.0mW | 1.0~60.0mW | 1.0~150.0mW | 1.0~450.0mW | |
Spot Type | Straight line | ||||
Angle of Line Fan | 5°-110° | ||||
Line Width (1/e2) | < 100μm @300mm (@450nm) | ||||
Depth of Field (mm) | ±25mm@300mm (general) | ||||
Straightness | >1000:1 (general) | ||||
>5000:1 can be customized | |||||
Working Distance (mm) | 300mm (general) | ||||
Other working distances can be customized | |||||
Focusing Mode | fixed focus | ||||
Brightness Uniformity | >70% (general) | ||||
>85% (customized) |

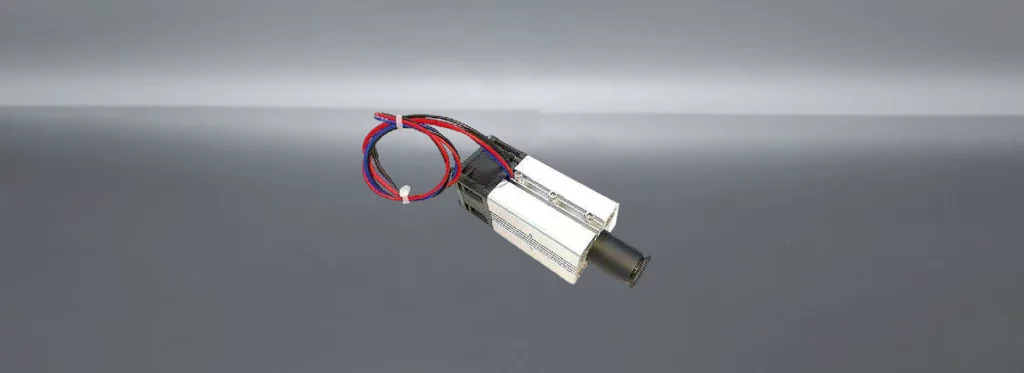

Line laser module · High power
Product Parameters | 405-450nm | 505-520nm | 635-650nm | 780-980nm | |
Optical | Wavelength Error | ±10nm | ±5nm | ±5nm | ±10nm |
Outlet Optical Power | >500mW | >500mW | >300mW | >500mW | |
Spot Type | Straight line | ||||
Angle of Line Fan | 5°-110° | ||||
Line Width (1/e2) | < 60μm @300mm (@450nm) | ||||
Straightness | >1000:1 (general) | ||||
>5000:1 (customized) | |||||
Working Distance (mm) | 300mm±150mm (general) | ||||
Other working distances can be customized | |||||
Focusing Mode | Manual focusing, focusing process line direction remains unchanged | ||||
Brightness Uniformity | >70% (general) | ||||
>85% (customized) |
Line laser module · Adjustable focus
Product Parameters | 405-450nm | 505-520nm | 635-650nm | 780-980nm | |
Optical | Wavelength Error | ±10nm | ±5nm | ±5nm | ±10nm |
Outlet Optical Power | 1.0~180.0mW | 1.0~60.0mW | 1.0~150.0mW | 1.0~450.0mW | |
Spot Type | Straight line | ||||
Angle of Line Fan | 5°-110° | ||||
Line Width (1/e2) | < 60μm @300mm (@450nm) | ||||
Straightness | >1000:1 (general) | ||||
>5000:1 (customized) | |||||
Working Distance (mm) | 300mm±150mm (general) | ||||
Other working distances can be customized | |||||
Focusing Mode | Manual focusing, focusing process line direction remains unchanged | ||||
Brightness Uniformity | >70% (general) | ||||
>85% (customized) |
If you are intereted in Line laser module, please click the button below to enquire or ask for a samplel.
